When discussing Project Blizz we realized, that we needed to discuss execution sequences. While all the modern tools ( MyEclipseIDE, RAD etc.) provide drawing tools, they are not suitable in a discussion where the flow changes rapidly. Nothing can beat a white board there, as long as the team is in one place. Since Nithi had to return to India we had to look for something else. Luckily I found Sequence. This little gem translates pseudo code into sequence diagrams as you type. So instead of fiddling around with layout (I'm not on a Mac), one can just type some lines of text and get a diagram in an instant. Our pattern for processing Domino stuff through the Websphere layer looks like this:

ServletOrTag.getResult {
	stuffRenderer.render(configName, parameters) -> OutputStream {
		configFetcher.fetch(configName) -> configObject;
		stuffTransformer.setSession(dxp2Session);
		stuffTransformer.transform(configObject, parameters) -> OutputStream {
			stuffFilter.setSession(dxp2Session);
			stuffFilter.filter(configObject,parameters) -> OutputStream {
				stuffFetcher.setSession(dxp2Session);
				stuffFetcher.fetch(configObject,parameters) -> OutputStream;
			}
		}
	}
}

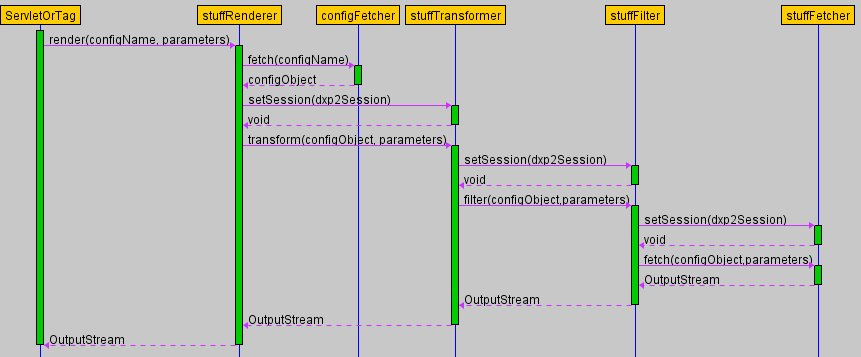

And Sequence turns that into this:
Sequence Diagram
