nginx as ingress for Docker compose

In June I wrote about how to use Docker & nginx to deliver statically rendered brotli files for your web (frontend) application. It improves delivery quite a bid, but left me wonder: isn't there too much static WebServer involved?

Double hop to deliver static files

A typical web application using micro/mini/midi services looks like this:

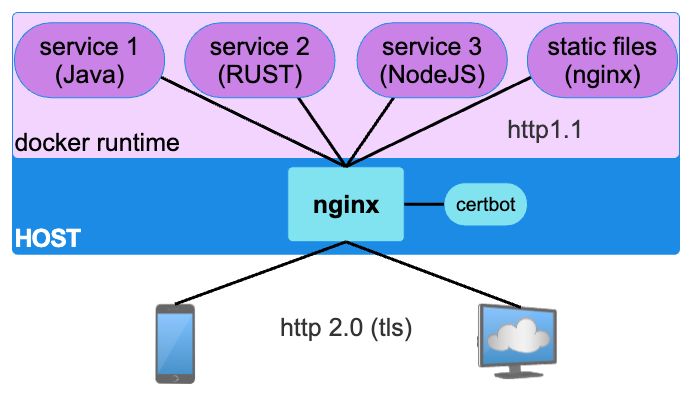

A typical Docker configuration

It is common, easy and concerns quite separated. However it comes with a set of challenges:

  • nginx doesn't do http/2 on proxy_pass, so you miss the ability to serve static files directly with http/2
  • For static file we have two nginx involved
  • Each service needs to be exposed to the host at some port
  • The service architecture leaks to the host based nginx. SO any change in service needs an update to the docker-compose.yml AND the host based nginx configuration
  • the containers depend on that, external to them, configuration

So I tried to design a better way to handle this without going all K-in:

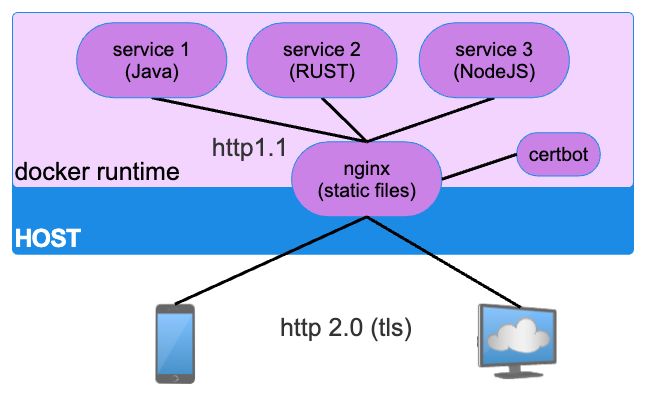

Docker configuration with ingress as component

This looed like a more promising approach:

  • Services could be addressed with their internal network name
  • Only Ports 80 and 443 of one container need exposure on the host
  • The nginx configuration inside the container is immutable and can't accidentially be reconfigured in production (your image comes from a pipeline isn't it)


  • When trying to configure certbot, I initially tried using the --nginx parameter with an http challenge and shared data mounts. None of the attempts worked satisfactory, so at the end I settled on aDNS-01 using CloudFlare.
  • Since I wanted the nginx configuration to be inside the container image (and not on a data mount), a good understandig of nginx's configuration is necessary. The only persisted information was /etc/letsencrypt for the certificate and a secret for CloudFlare credentials
  • When the nginx configuration is statically configured for TLS, on initial load it will fail since the certs don't exist yet. Auntie Google suggested a manual run of certbot, but I favour docker compose up to handle everything
  • I ended up creating my own docker images, which was an epiphany: it absolutely makes sense to build a container image for single use instead of trying hard to make it configurable and vulnerable to mis-configuration

Read more

Posted by on 15 November 2023 | Comments (0) | categories: Docker nginx WebDevelopment
